Transformer Rectifier for Industrial Brakes and Clutches

Home Products Transformer Rectifier for Industrial Brakes and Clutches

Introduction :


Product Description

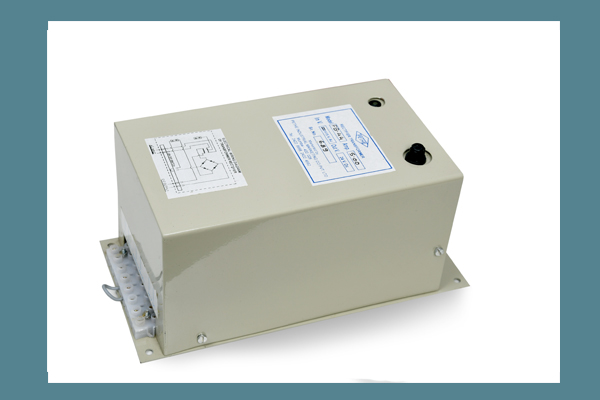

A transformer rectifier is a device that converts alternating current (AC) voltage into direct current (DC) voltage. Brake and Clutch coils are operated with DC voltages. Transformer steps the AC voltage down from 415 VAC to 24 VDC and Rectifier converts it from AC to DC.

Transformer Rectifier is a crucial component in the control systems of industrial brakes and clutches, ensuring precise and reliable operation by providing the necessary DC voltage.

Salient features :

  • High Efficiency operation minimizes energy losses during the conversion process.
  • Built with high-quality materials, it offers long-term durability and reliability in operation.
  • DC Side switching is enabled by default for falling load applications such as hoists, lifts and cranes.
  • Enhanced Performance and responsiveness of brakes and clutches by providing stable and consistent DC voltage.
  • Superior Design prevents damage to brake / clutch coil from excessive current.

Uses and Applications

  • Rectifiers are used extensively in Electromagnetic Brakes, Clutches, Clutch Brake Combinations, Spring applied Brakes, operating on DC voltage.
  • Rectifiers are widely used in applications such as Material Handling Equipment namely, Hoists, Lifts, Cranes, Winches and Conveyors.
  • They are utilized in heavy machinery used in construction, mining, and other industrial sectors to control braking and clutch systems.
  • Rectifiers are used in Printing, Packaging and Textile machineries.
  • Any process equipment, SPMs and machine tools using brakes and clutches.
Sr.No Model Capacity Length Width Height Weight
1 FB 1 1 Amps 190mm 100mm 85mm 1 Kg
2 FB 19 2 Amps 230mm 105mm 90mm 2 Kgs
3 FB 44 5 Amps 250mm 125mm 110mm 4 Kgs

Voltage options

Input Voltage Output Voltage
415 / 230 VAC 24 VDC

other voltages upon request.

Transformer Rectifier for Brakes and Clutches supplier and manufacturer

Pethe Industrial Marketing Company Pvt. Ltd. is the leading manufacturer and supplier of Transformer Rectifiers for industrial brakes and clutches in Mumbai, Maharashtra, Gujarat, Delhi, Pune, Bangalore, Chennai, Ahmedabad, Kolkata,Baroda, Hyderabad, Latur, Nagpur, Udaipur, Telangana, Vijaywada, Surat,Rajkot, Bhopal, Coimbatore, Raipur, Ranchi, Faridabad, Noida, Ghaziabad and all over India.
